TNL::Solvers::Linear::UmfpackWrapper< Matrix, SolverMonitor > Class Template Reference

Inheritance diagram for TNL::Solvers::Linear::UmfpackWrapper< Matrix, SolverMonitor >:

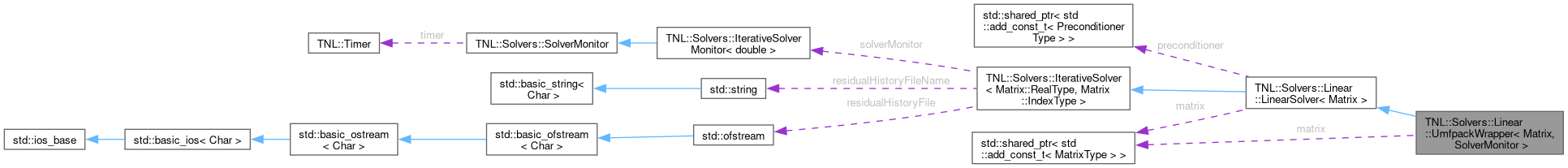

Collaboration diagram for TNL::Solvers::Linear::UmfpackWrapper< Matrix, SolverMonitor >:

Public Types
using	ConstVectorViewType = typename Base::ConstVectorViewType
using	DeviceType = typename Base::DeviceType
using	IndexType = typename Base::IndexType
using	MatrixPointer = typename Base::MatrixPointer
using	MatrixType = typename Base::MatrixType
using	RealType = typename Base::RealType
using	VectorViewType = typename Base::VectorViewType
Public Types inherited from TNL::Solvers::Linear::LinearSolver< Matrix >
using	ConstVectorViewType = typename Traits< Matrix >::ConstVectorViewType
	Type for constant vector view.
using	DeviceType = typename Matrix::DeviceType
	Device where the solver will run on and auxiliary data will alloacted on.
using	IndexType = typename Matrix::IndexType
	Type for indexing.
using	MatrixPointer = std::shared_ptr< std::add_const_t< MatrixType > >
	Type of shared pointer to the matrix.
using	MatrixType = Matrix
	Type of the matrix representing the linear system.
using	PreconditionerPointer = std::shared_ptr< std::add_const_t< PreconditionerType > >
	Type of shared pointer to the preconditioner.
using	PreconditionerType = Preconditioners::Preconditioner< MatrixType >
	Type of preconditioner.
using	RealType = typename Matrix::RealType
	Floating point type used for computations.
using	VectorViewType = typename Traits< Matrix >::VectorViewType
	Type for vector view.
Public Types inherited from TNL::Solvers::IterativeSolver< Matrix::RealType, Matrix::IndexType >
using	SolverMonitorType
	Type of an object used for monitoring of the convergence.

Public Member Functions
void	setMatrix (const MatrixPointer &matrix) override
	Set the matrix of the linear system.
bool	solve (ConstVectorViewType b, VectorViewType x) override
	Method for solving a linear system.
Public Member Functions inherited from TNL::Solvers::Linear::LinearSolver< Matrix >
virtual	~LinearSolver ()=default
	Default destructor.
void	setPreconditioner (const PreconditionerPointer &preconditioner)
	Set the preconditioner.
virtual bool	setup (const Config::ParameterContainer &parameters, const String &prefix="")
	Method for setup of the linear iterative solver based on configuration parameters.
Public Member Functions inherited from TNL::Solvers::IterativeSolver< Matrix::RealType, Matrix::IndexType >
	IterativeSolver ()=default
	Default constructor.
bool	checkConvergence ()
	Checks whether the convergence occurred already.
bool	checkNextIteration ()
	Checks if the solver is allowed to do the next iteration.
const Matrix::RealType &	getConvergenceResidue () const
	Gets the the convergence threshold.
const Matrix::RealType &	getDivergenceResidue () const
	Gets the limit for the divergence criterion.
const Matrix::IndexType &	getIterations () const
	Gets the number of iterations performed by the solver so far.
const Matrix::IndexType &	getMaxIterations () const
	Gets the maximal number of iterations the solver is allowed to perform.
const Matrix::IndexType &	getMinIterations () const
	Gets the minimal number of iterations the solver is supposed to do.
const Matrix::RealType &	getResidue () const
	Gets the residue reached at the current iteration.
bool	nextIteration ()
	Proceeds to the next iteration.
void	resetIterations ()
	Sets the the number of the current iterations to zero.
void	setConvergenceResidue (const Matrix::RealType &convergenceResidue)
	Sets the threshold for the convergence.
void	setDivergenceResidue (const Matrix::RealType &divergenceResidue)
	Sets the residue limit for the divergence criterion.
void	setMaxIterations (const Matrix::IndexType &maxIterations)
	Sets the maximal number of iterations the solver is allowed to perform.
void	setMinIterations (const Matrix::IndexType &minIterations)
	Sets the minimal number of iterations the solver is supposed to do.
void	setRefreshRate (const Matrix::IndexType &refreshRate)
	Sets the refresh rate (in milliseconds) for the solver monitor.
void	setResidue (const Matrix::RealType &residue)
	Sets the residue reached at the current iteration.
void	setSolverMonitor (SolverMonitorType &solverMonitor)
	Sets the solver monitor object.
bool	setup (const Config::ParameterContainer &parameters, const std::string &prefix="")
	Method for setup of the iterative solver based on configuration parameters.

Protected Attributes
bool	factorized = false
MatrixPointer	matrix
Protected Attributes inherited from TNL::Solvers::Linear::LinearSolver< Matrix >
MatrixPointer	matrix = nullptr
PreconditionerPointer	preconditioner = nullptr
Protected Attributes inherited from TNL::Solvers::IterativeSolver< Matrix::RealType, Matrix::IndexType >
Matrix::RealType	convergenceResidue
Matrix::IndexType	currentIteration
Matrix::RealType	currentResidue
Matrix::RealType	divergenceResidue
Matrix::IndexType	maxIterations
Matrix::IndexType	minIterations
Matrix::IndexType	refreshRate
std::ofstream	residualHistoryFile
std::string	residualHistoryFileName
IterativeSolverMonitor< double > *	solverMonitor

Additional Inherited Members
Static Public Member Functions inherited from TNL::Solvers::Linear::LinearSolver< Matrix >
static void	configSetup (Config::ConfigDescription &config, const String &prefix="")
	This method defines configuration entries for setup of the linear iterative solver.
Static Public Member Functions inherited from TNL::Solvers::IterativeSolver< Matrix::RealType, Matrix::IndexType >
static void	configSetup (Config::ConfigDescription &config, const std::string &prefix="")
	This method defines configuration entries for setup of the iterative solver.

Member Function Documentation

setMatrix()

template<typename Matrix, typename SolverMonitor>

void TNL::Solvers::Linear::UmfpackWrapper< Matrix, SolverMonitor >::setMatrix ( const MatrixPointer & matrix )

overridevirtual

Set the matrix of the linear system.

Parameters

matrix

is a shared pointer to the matrix of the linear system

Reimplemented from TNL::Solvers::Linear::LinearSolver< Matrix >.

solve()

template<typename Matrix, typename SolverMonitor>

bool TNL::Solvers::Linear::UmfpackWrapper< Matrix, SolverMonitor >::solve ( ConstVectorViewType b, VectorViewType x )

overridevirtual

Method for solving a linear system.

The linear system is defined by the matrix given by the method LinearSolver::setMatrix and by the right-hand side vector represented by the vector b. The result is stored in the vector b. The solver can be accelerated with appropriate preconditioner set by the methods LinearSolver::setPreconditioner.

Parameters

b	vector with the right-hand side of the linear system.
x	vector for the solution of the linear system.

Returns

true if the solver converged.

false if the solver did not converge.

Example

#include <iostream>
#include <memory>
#include <TNL/Matrices/SparseMatrix.h>
#include <TNL/Devices/Host.h>
#include <TNL/Devices/Cuda.h>
#include <TNL/Solvers/Linear/TFQMR.h>

template< typename Device >
void
iterativeLinearSolverExample()
{
   /***
    * Set the following matrix (dots represent zero matrix elements):
    *
    *   /  2.5 -1    .    .    .   \
    *   | -1    2.5 -1    .    .   |
    *   |  .   -1    2.5 -1.   .   |
    *   |  .    .   -1    2.5 -1   |
    *   \  .    .    .   -1    2.5 /
    */
   using MatrixType = TNL::Matrices::SparseMatrix< double, Device >;
   using Vector = TNL::Containers::Vector< double, Device >;
   const int size( 5 );
   auto matrix_ptr = std::make_shared< MatrixType >();
   matrix_ptr->setDimensions( size, size );
   matrix_ptr->setRowCapacities( Vector( { 2, 3, 3, 3, 2 } ) );

   auto f = [ = ] __cuda_callable__( typename MatrixType::RowView & row ) mutable
   {
      const int rowIdx = row.getRowIndex();
      if( rowIdx == 0 ) {
         row.setElement( 0, rowIdx, 2.5 );     // diagonal element
         row.setElement( 1, rowIdx + 1, -1 );  // element above the diagonal
      }
      else if( rowIdx == size - 1 ) {
         row.setElement( 0, rowIdx - 1, -1.0 );  // element below the diagonal
         row.setElement( 1, rowIdx, 2.5 );       // diagonal element
      }
      else {
         row.setElement( 0, rowIdx - 1, -1.0 );  // element below the diagonal
         row.setElement( 1, rowIdx, 2.5 );       // diagonal element
         row.setElement( 2, rowIdx + 1, -1.0 );  // element above the diagonal
      }
   };

   /***
    * Set the matrix elements.
    */
   matrix_ptr->forAllRows( f );
   std::cout << *matrix_ptr << std::endl;

   /***
    * Set the right-hand side vector.
    */
   Vector x( size, 1.0 );
   Vector b( size );
   matrix_ptr->vectorProduct( x, b );
   x = 0.0;
   std::cout << "Vector b = " << b << std::endl;

   /***
    * Solve the linear system.
    */
   using LinearSolver = TNL::Solvers::Linear::TFQMR< MatrixType >;
   LinearSolver solver;
   solver.setMatrix( matrix_ptr );
   solver.setConvergenceResidue( 1.0e-6 );
   solver.solve( b, x );
   std::cout << "Vector x = " << x << std::endl;
}

int
main( int argc, char* argv[] )
{
   std::cout << "Solving linear system on host: " << std::endl;
   iterativeLinearSolverExample< TNL::Devices::Sequential >();

#ifdef __CUDACC__
   std::cout << "Solving linear system on CUDA device: " << std::endl;
   iterativeLinearSolverExample< TNL::Devices::Cuda >();
#endif
}

Output

Solving linear system on host:
Row: 0 ->     0:2.5     1:-1
Row: 1 ->     0:-1      1:2.5     2:-1
Row: 2 ->     1:-1      2:2.5     3:-1
Row: 3 ->     2:-1      3:2.5     4:-1
Row: 4 ->     3:-1      4:2.5

Vector b = [ 1.5, 0.5, 0.5, 0.5, 1.5 ]
Vector x = [ 1, 1, 1, 1, 1 ]
Solving linear system on CUDA device:
Row: 0 ->     0:2.5     1:-1
Row: 1 ->     0:-1      1:2.5     2:-1
Row: 2 ->     1:-1      2:2.5     3:-1
Row: 3 ->     2:-1      3:2.5     4:-1
Row: 4 ->     3:-1      4:2.5

Vector b = [ 1.5, 0.5, 0.5, 0.5, 1.5 ]
Vector x = [ 1, 1, 1, 1, 1 ]

Implements TNL::Solvers::Linear::LinearSolver< Matrix >.

---

The documentation for this class was generated from the following files:

• src/TNL/Solvers/Linear/UmfpackWrapper.h
• src/TNL/Solvers/Linear/UmfpackWrapper.hpp
